Overview
What is ACM?
Aluminum Composite Material (ACM) is a high-performance, lightweight cladding solution composed of two aluminum sheets bonded to a non-aluminum core. It offers exceptional durability, weather resistance, and aesthetic versatility, making it an ideal choice for modern architectural designs.
Advantages
Why Choose ACM?
ACM stands out due to its rigidity, ease of installation, and variety of finishes. Its ability to withstand harsh weather conditions while maintaining a sleek appearance makes it a preferred material for both residential and commercial cladding applications.
1
Rigidity and Lightweight
ACM panels provide the strength of heavier materials without the added weight, simplifying transportation and installation.
2
Aesthetic Versatility
Available in a multitude of colors and finishes, ACM can mimic materials like stone and wood, offering endless design possibilities.
3
Durability and Weather Resistance
With excellent resistance to UV rays, corrosion, and environmental wear, ACM panels ensure long-lasting performance.
4
Cost-Effective
ACM’s high production efficiency and low maintenance needs make it a cost-effective choice for high-quality architectural cladding.
Project Types

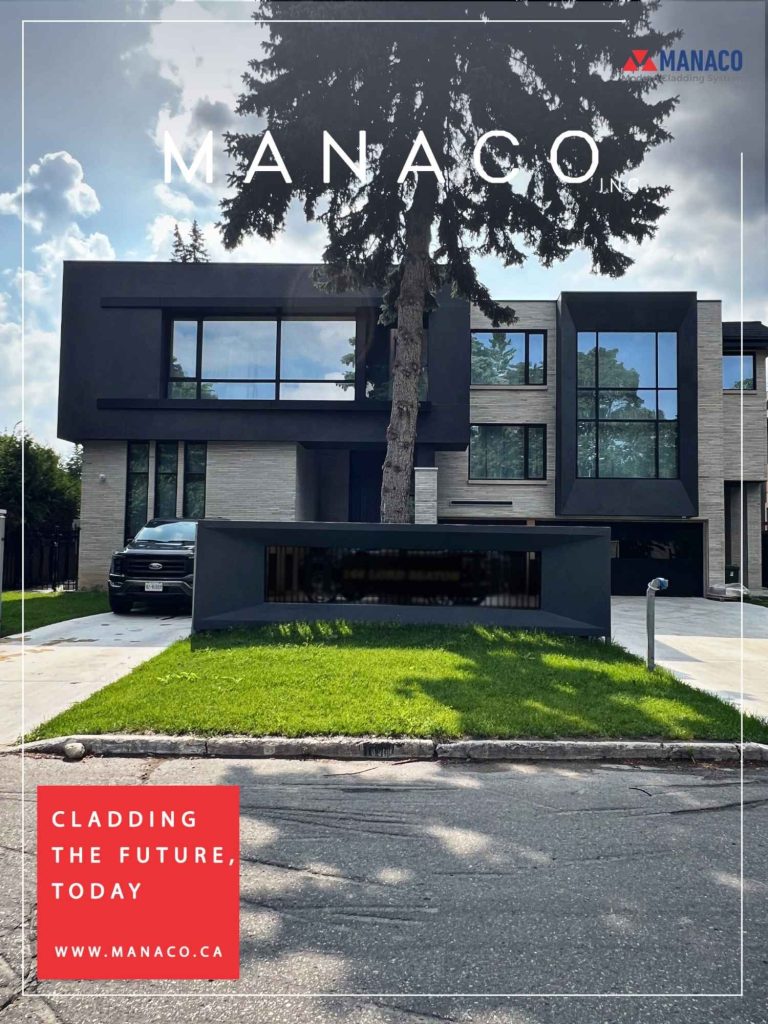

Residential
ACM cladding offers homeowners a way to dramatically improve their home’s exterior without the need for constant upkeep. The material’s versatility in finishes and colors allows for a personalized look that can mimic wood, stone, or metallic textures, providing a modern upgrade to any home.
Project Types
Commercial
ACM cladding delivers both functional and visual benefits. Its robust construction protects against harsh weather, while its sleek appearance enhances the building’s professional image. This makes it an excellent choice for offices, retail spaces, and showrooms aiming to impress clients and customers.
Other Project Types
Top Layer
Clear Top UV Coat
Layer #2
Light Coating
Layer #3
Face Coating
Layer #4
Primer
Layer #5
0.5 mm Aluminum
Core
Polyethylene (PE) or fire-resistant material
Layer #6
0.5 mm Aluminum
Bottom Layer
Anti-corrosive Coating
Specifications
ACM Layers
Top Layer
Clear Top UV Coat
Layer #2
Light Coating
Layer #3
Face Coating
Layer #4
Primer
Layer #5
0.5 mm Aluminum
Core
Polyethylene (PE) or fire-resistant material
Layer #6
0.5 mm Aluminum
Bottom Layer
Anti-corrosive Coating
75%
of modern buildings in urban areas utilize ACM for their exterior finishes
Specifications
ACM Specifications
Below are the specifications of the aluminum composite material (ACM) we supply, designed to meet the highest standards of quality and performance.
Panel Thickness
3mm - 6mm
Core Material
PE or FR Core
Finish Options
Gloss, Matte, Brushed
Fire Ratings
B1, A2
Durability
UV, weather, corrosion resistant
Weight
Approximately 9.8 kg/m²
Width
1220mm, 1250mm, 1500mm
Aluminum Skin Thickness
0.21mm - 0.5mm
Sound Insulation
Rw 25 dB
Thermal Expansion
2.4 mm/m at 100°C temperature change
Specifications
Mounting Systems
At Manaco Cladding, we offer a range of advanced installation systems for ACM cladding, ensuring precision, durability, and aesthetic excellence in every project. Here are the primary systems we use:
Hanging Systems
The Hanging system is a versatile method that uses special spacers (shims), clips, perimeter extrusions (E bars), and Z bars (if needed). This system allows for precise alignment and secure attachment of the ACM panels, ensuring a clean, professional appearance. The flexibility of the Z bars makes it easy to accommodate variations in the building structure, while the E bars provide strong perimeter support.
Male-Female Systems
The Male-Female system employs special L spacers and T profiles to create a strong, interlocking connection between the panels. This method is particularly effective for ensuring tight, secure joints that enhance both the structural integrity and aesthetic appeal of the facade. The interlocking design also simplifies the installation process, making it an efficient choice for large-scale projects.
Riveted Systems
The Riveted system uses double T spacers and Omega profiles to securely fasten the ACM panels to the building’s substructure. This method is known for its strength and durability, making it ideal for applications where long-term performance is critical. The riveted connections provide a robust mechanical bond, ensuring that the panels remain securely in place even under challenging environmental conditions.
Glued Systems
The Glued system is designed for internal applications, utilizing a substructure of independent angled spacers and ribbed tubes. This system is particularly suited for situations where a seamless, fastener-free appearance is desired. The specialized adhesive ensures a strong bond between the panels and the substructure, while the ribbed tubes provide additional support and alignment.
